Ring and Pinion Break-In Done: The 500-Mile Forensic Verdict

​After we get 500 miles on the Jeep finishing our break-in period, we pull the differential covers and inspect the gears. This isn’t just a “feel good” maintenance step; it is the forensic moment of truth for any DIY gear swap. We look at the bite pattern on the ring gears to make sure the ring and pinion alignment is solid, then we check the oil we drained for metal. If you’ve spent any time under a Jeep YJ, you know that the Dana 35 and Dana 30 aren’t known for being bulletproof, so getting the 4.88 setup right is the difference between a reliable wheeler and a trail-side nightmare.

​Jeep Gear Change Playlist: Watch the Full Series Here

Removing the Differential Cover: The Messy Reality

​When we originally installed these 4.88 gears, we made a tactical decision: we didn’t use any silicone. Most guys go heavy on the RTV, but the K.I.S.S. method tells you that if your surfaces are flat and your gasket is high-quality, you don’t need a tube of goop to seal a pumpkin. This made it incredibly easy to remove the differential cover once we reached 500 miles. We had to change the gear oil anyway, so why make it a forensic crime scene of scraped-off silicone?

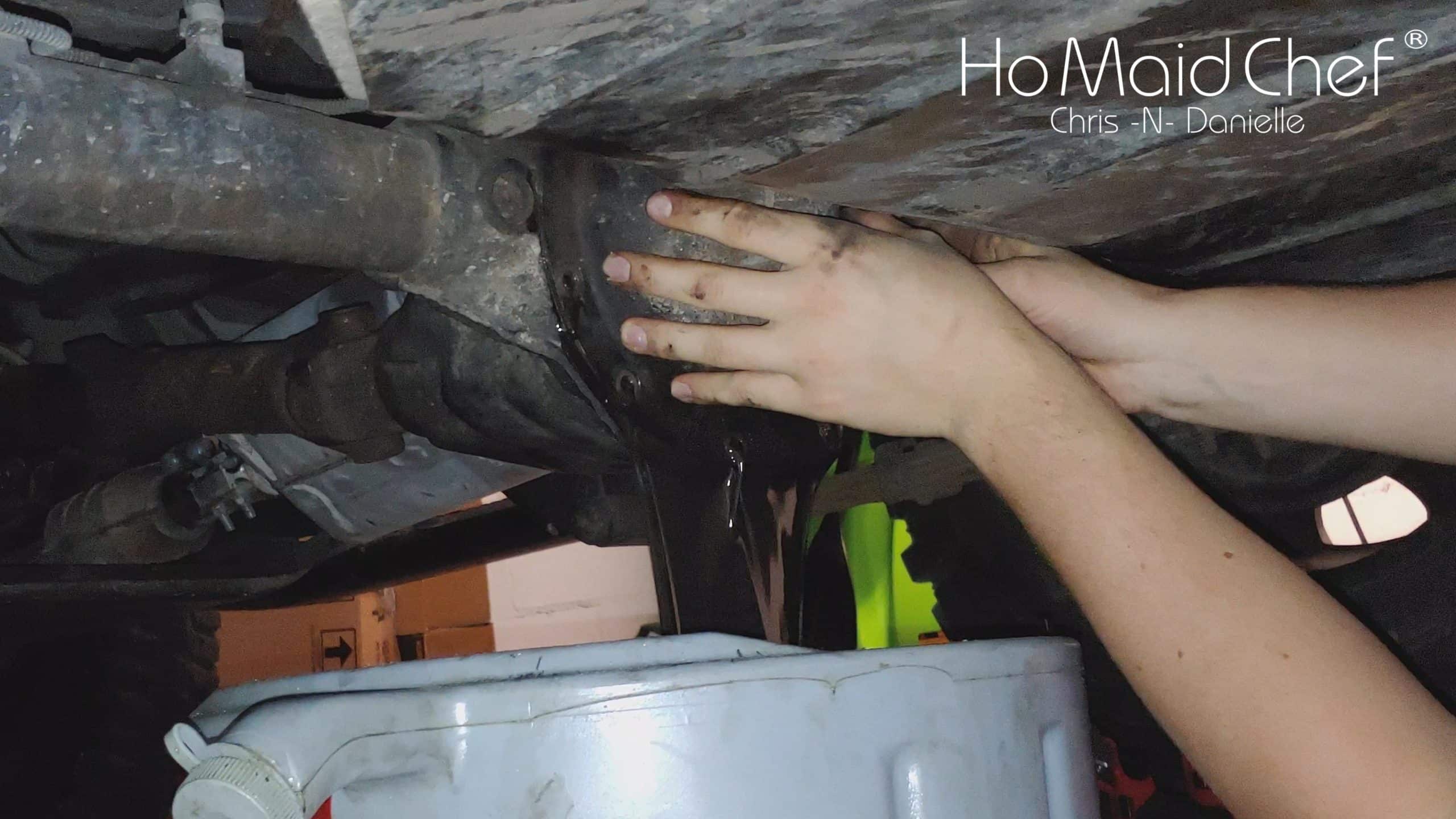

​We removed the pan cover by hand. Since we didn’t use adhesive, the old gasket was not damaged as the ring and pinion cover was removed. This is a huge win for the budget-conscious DIYer. You can see in the drain pan that the color of the oil is very dark—almost black. This is exactly why they recommend changing the differential oil when you install a new ring and pinion. That initial 500 miles is where the gears “introduce” themselves to one another. They generate heat, microscopic friction, and a bit of metal “dust” as they seat. If you leave that contaminated oil in there, you’re basically running liquid sandpaper through your carrier bearings.

Ring and Pinion Inspection: Reading the Teeth

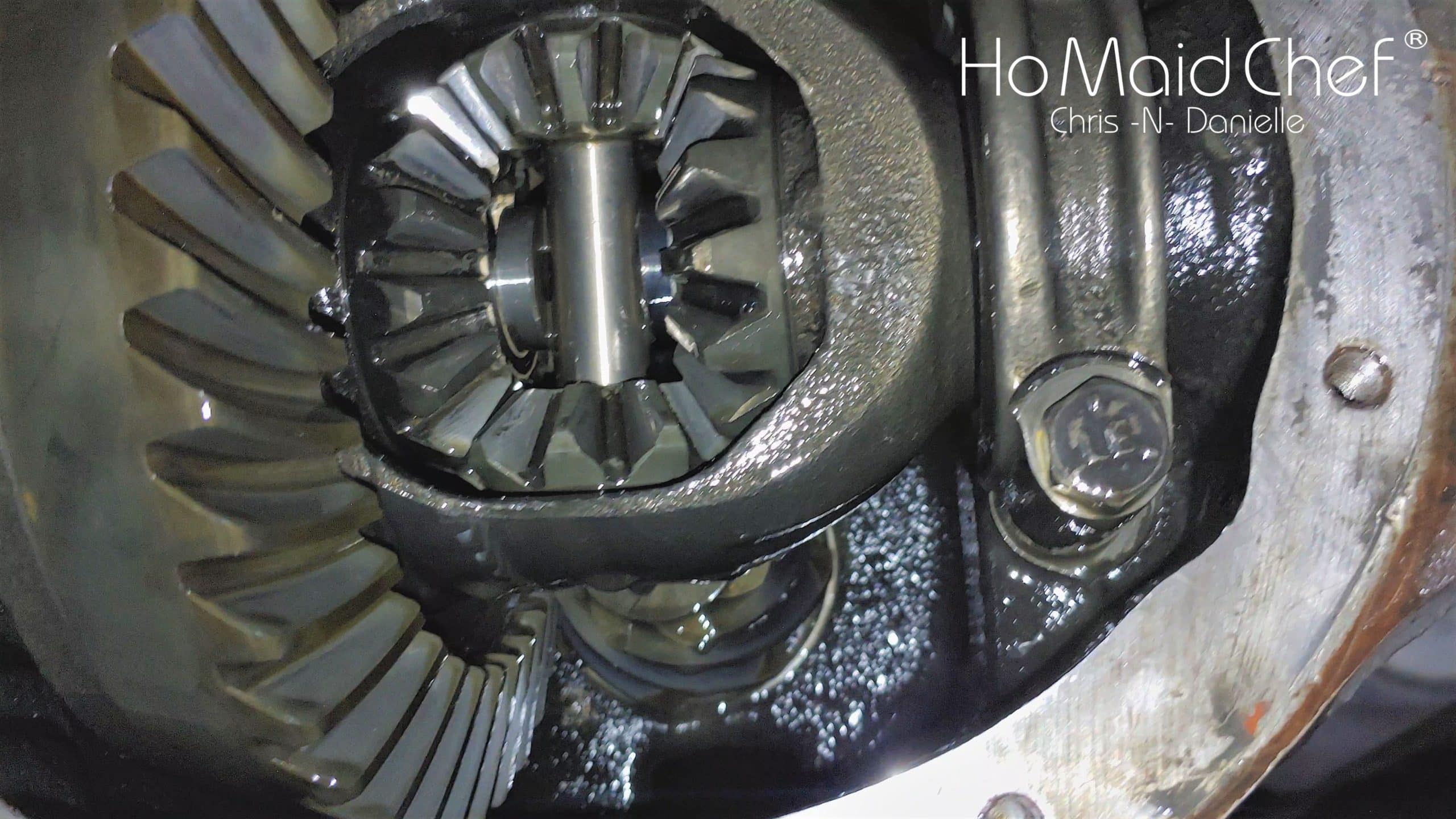

​Once we had the pan cover off, we could finally access the internal mechanicals and see how our newly installed ring and pinion was doing. We were really happy to see that our install was great; the wear on the ring gear was exactly as expected with a nice, centered “bite” on the tooth. In the world of gear installs, the wear pattern is your forensic evidence. It doesn’t lie.

​Technical Analysis of the Wear Pattern:

• ​The “Centered” Bite: This is the goal. You want the contact patch to be in the middle of the tooth. This ensures the load is distributed evenly across the metal.
• ​Too Shallow: If the pinion gear was set too shallow, the wear pattern would have been more apparent toward the top (the “face”) of the ring gear tooth. This is a recipe for disaster. Shallow gears cause chipping and eventual catastrophic failure under load.
• ​Too Deep: Conversely, if the pinion gear was too deep in the ring gear, it would have caused chipping of the pinion itself and deep scratching at the “flank” or bottom of the ring gear tooth.

​Because we took the time during the initial install to get the shim stacks right on the Dana 35, our 500-mile inspection showed a textbook pattern. No metal shavings in the bottom of the pumpkin and no “glitter” in the oil. That is the forensic proof of a successful DIY project.

Putting the Differential Pan On: Torque and Technique

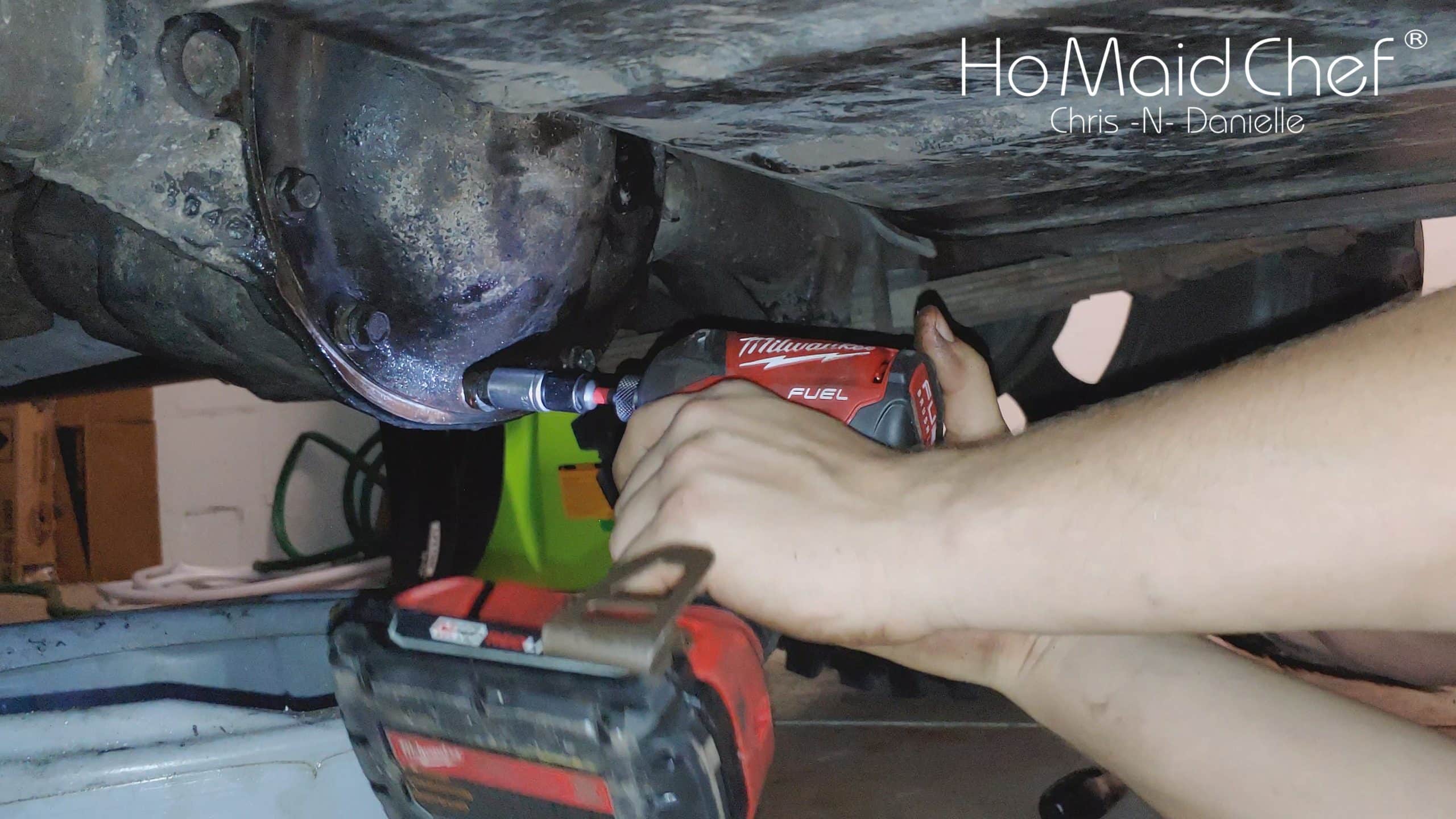

​Once the inspection of the gears was done and we confirmed that we needed to make no adjustments, it was time to put the pumpkin cover back on the differential. A lot of guys make the mistake of treating these diff cover bolts like they are head bolts. Don’t do that.

​Remember that these small bolts won’t handle a bunch of torque. If you get over-zealous with the impact or a long-handled wrench, you will snap them off in the housing. Then you’re moving from a 30-minute oil change to a four-hour extraction project. Keep it blunt: they just need to be snug. Also, with how many bolts there are and how close they are together, the seal will be good as long as your surfaces are bone-dry and your gasket is intact. We reused the old differential gasket because, again, we didn’t use silicone to glue it down. It’s about efficiency and keeping the Jeep on the trail.

Pump Oil Back Into Differential: The Stern Drive Hack

​Once the pan cover is on and tightened to torque spec, it’s time to add the “good” gear oil—the stuff that’s going to live in there for the next several thousand miles. Due to the tight clearances on our Jeep Wrangler YJ, especially with the gas tank and the track bar in the way, you can’t just tip a bottle of gear oil and pour it in. You’ll end up with more oil on your driveway than in your diff.

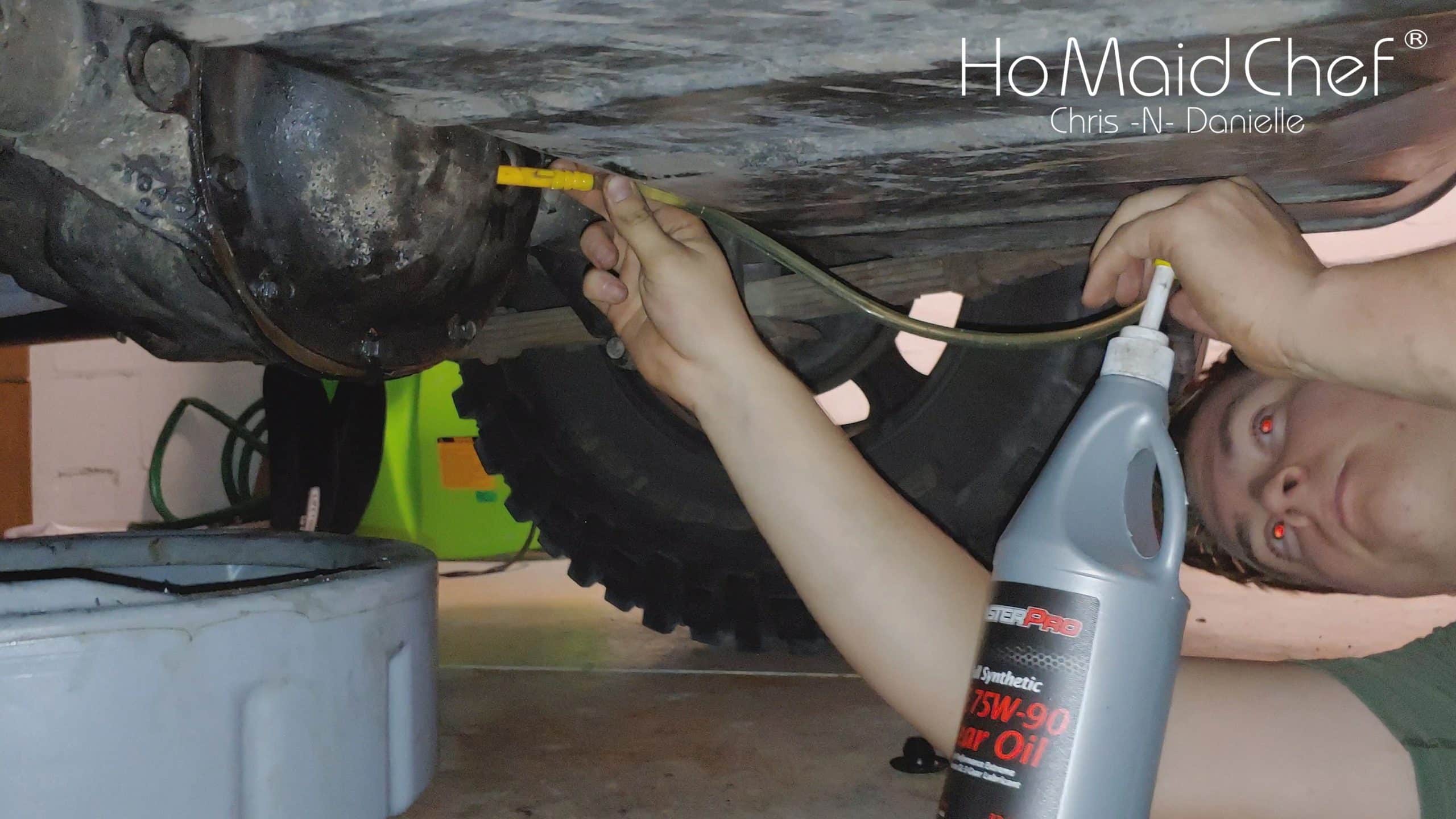

​You have to pump it. Here is where the “Silo Cross-Over” happens. You can see our son using our stern drive oil pump that we usually use for the boat. This little pump threads directly onto the top of a standard gear oil bottle. It’s a game-changer for Jeep maintenance. It allows you to pump the fluid cleanly into the fill hole without any spills or gymnastics. It’s the forensic solution to a messy problem.

Our Final Thoughts on the 4.88 Swap

​We are really happy with the 4.88 ring and pinion in this Jeep. When you are running the small 2.5-liter four-cylinder engine, you need all the mechanical advantage you can get. This gear swap finally gave us the power we need to maintain 65-70 MPH on the highway without the engine screaming or bogging down on every slight incline.

​But the real magic is on the trail. These gears significantly improve our trailing performance by providing a much slower crawl speed. When things get technical and you’re picking a line through the Florida brush, that low-end torque and control are everything. It takes the stress off the clutch and puts the power where it belongs—on the ground.

​If you are struggling with a sluggish 2.5L Jeep, don’t waste money on “cold air intakes” or “performance chips” that don’t do anything. Invest in your gears. See the playlist above if you want to look at the more technical aspects of this project and the testing we’ve done with these 4.88s. We’re officially out of the break-in period and ready to hit the dirt.

Frequently Asked Questions: Gear Break-In & Inspection

​Q: Why do I need to change my differential oil after exactly 500 miles?

A: The forensic reality is that new ring and pinion gears create microscopic metal particles and significant heat as they “seat” together during the first 500 miles. Leaving that contaminated oil in the housing acts like liquid sandpaper on your bearings and seals. Dumping the break-in oil ensures your 4.88 gears and carrier bearings last for years instead of months.

​Q: How can I tell if my gears are wearing correctly during the inspection?

A: You need to inspect the “bite” or contact pattern on the ring gear teeth. You are looking for a centered, even wear pattern on both the coast and drive sides of the tooth.

​If the pattern is creeping toward the top (face) or the bottom (flank) of the tooth, your pinion depth is wrong and needs to be adjusted immediately before the gears chip or whine.

​Q: What is the best way to fill a Jeep differential with new gear oil?

A: Because of the awkward angle of the pumpkin on a Jeep YJ, pouring directly from the bottle is a mess and usually leads to under-filling. We use a boat Stern Drive oil pump. It threads directly onto a standard quart bottle of gear oil and allows you to pump the fluid cleanly into the fill hole until it starts to weep out.

​Q: Do I always need to use silicone (RTV) to seal the differential cover?

A: Not necessarily. If your differential housing and cover surfaces are perfectly flat and clean, a high-quality dry gasket will seal just fine. We prefer the K.I.S.S. method of using a gasket without silicone because it makes future inspections and oil changes much faster and less messy.

​Q: What happens if I find “glitter” or metal shavings in my break-in oil?

A: Small amounts of “gray dust” in the oil are normal as the gears seat. However, if you find actual metal flakes, “glitter,” or chunks, it’s a forensic red flag that your clearances are wrong, your shims are drifting, or a bearing is failing. If you see chunks, do not put the cover back on—you need to pull the carrier and find the source.
