Volvo Serpentine Belt

Replacing the Serpentine Belt with a tensioner is a pretty easy job. On a Volvo it can be a little tight and there are a few things that got to be removed first. So lets go over what has to happen to make changing the belt on your Volvo easier.

Help Us Grow For Free

Replace a Serpentine Belt On Volvo - Chris Does What
YouTube Video

Get  the radiator and power steering reservoir out of the way

First you need to get the radiator and power steering reservoir out of the way. To do this you only need to slide the line going from the power steering pump out of it’s restraint on the top of the pump. Then remove the line on the radiator reservoir that is closest to the fender. Be sure to plug this line once remove to reduce the amount of coolant lost. You can now simple lift the radiator and power steering reservoir out and lay them on top of the engine. See picture and video for further details.

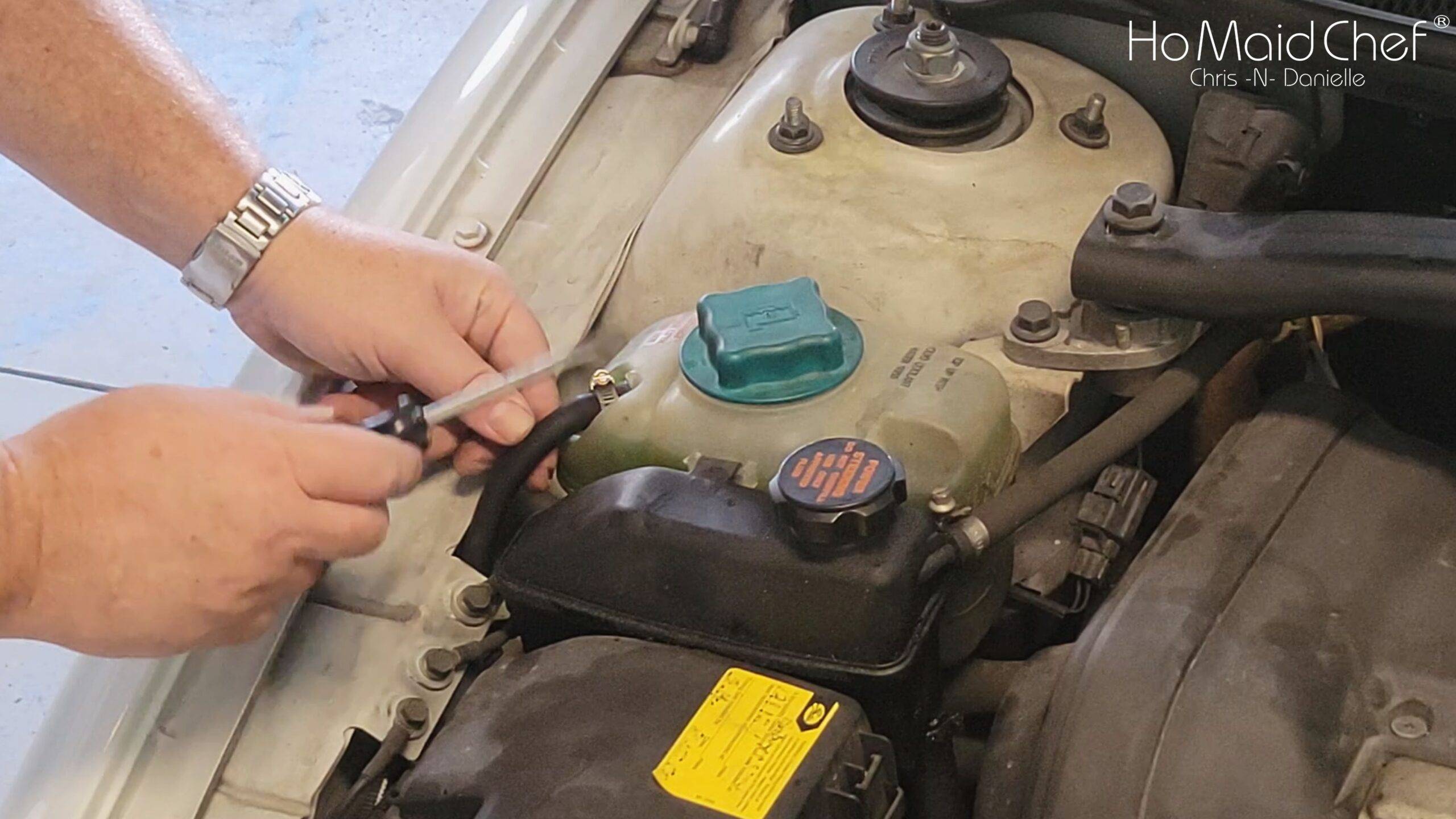

Remove Volvo Radiator Reservoir Hose - Chris Does What
Remove Volvo Radiator Reservoir Hose

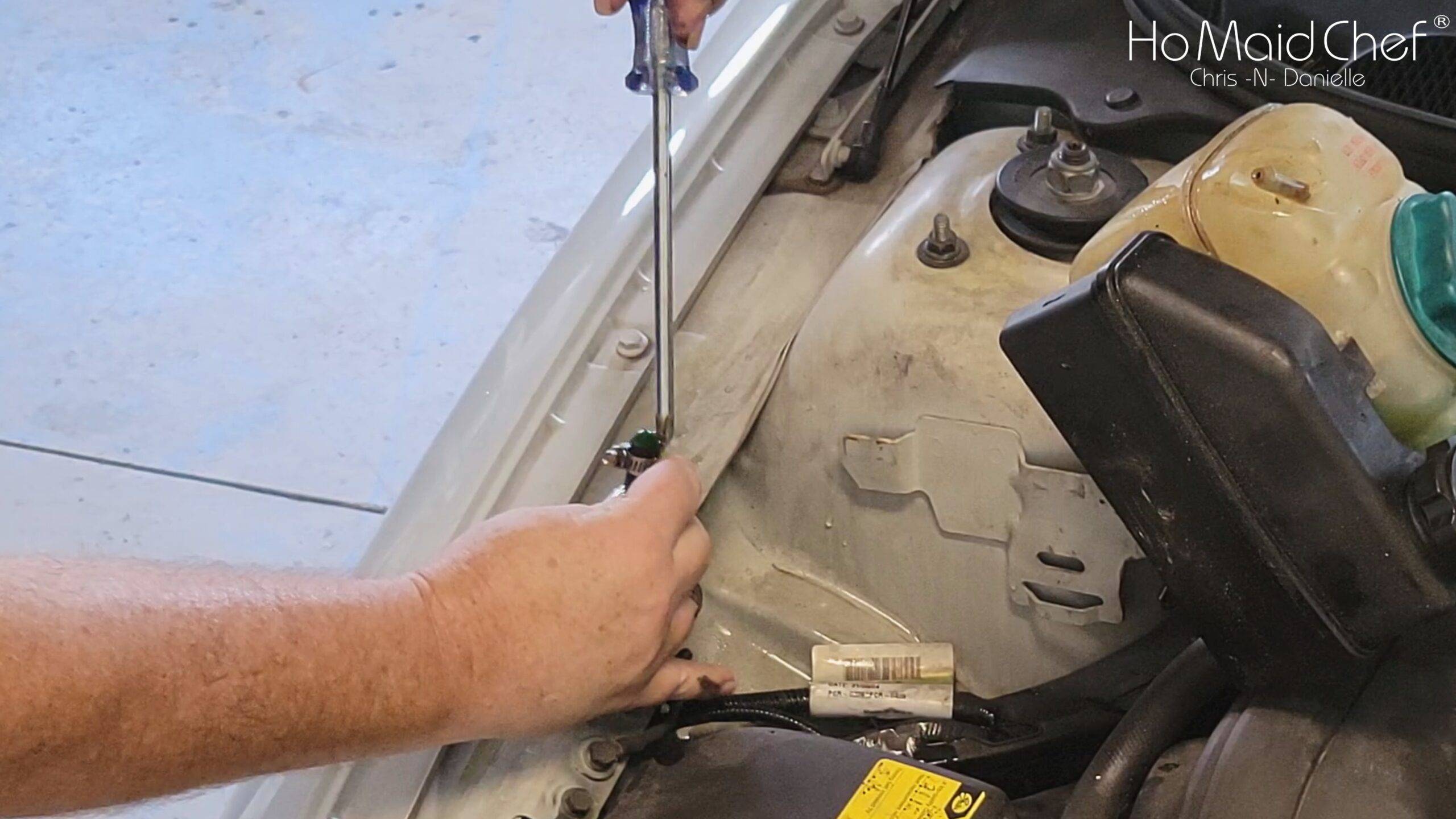

Plug Volvo Radiator Reservoir Line - Chris Does What
Plug Volvo Radiator Reservoir Line

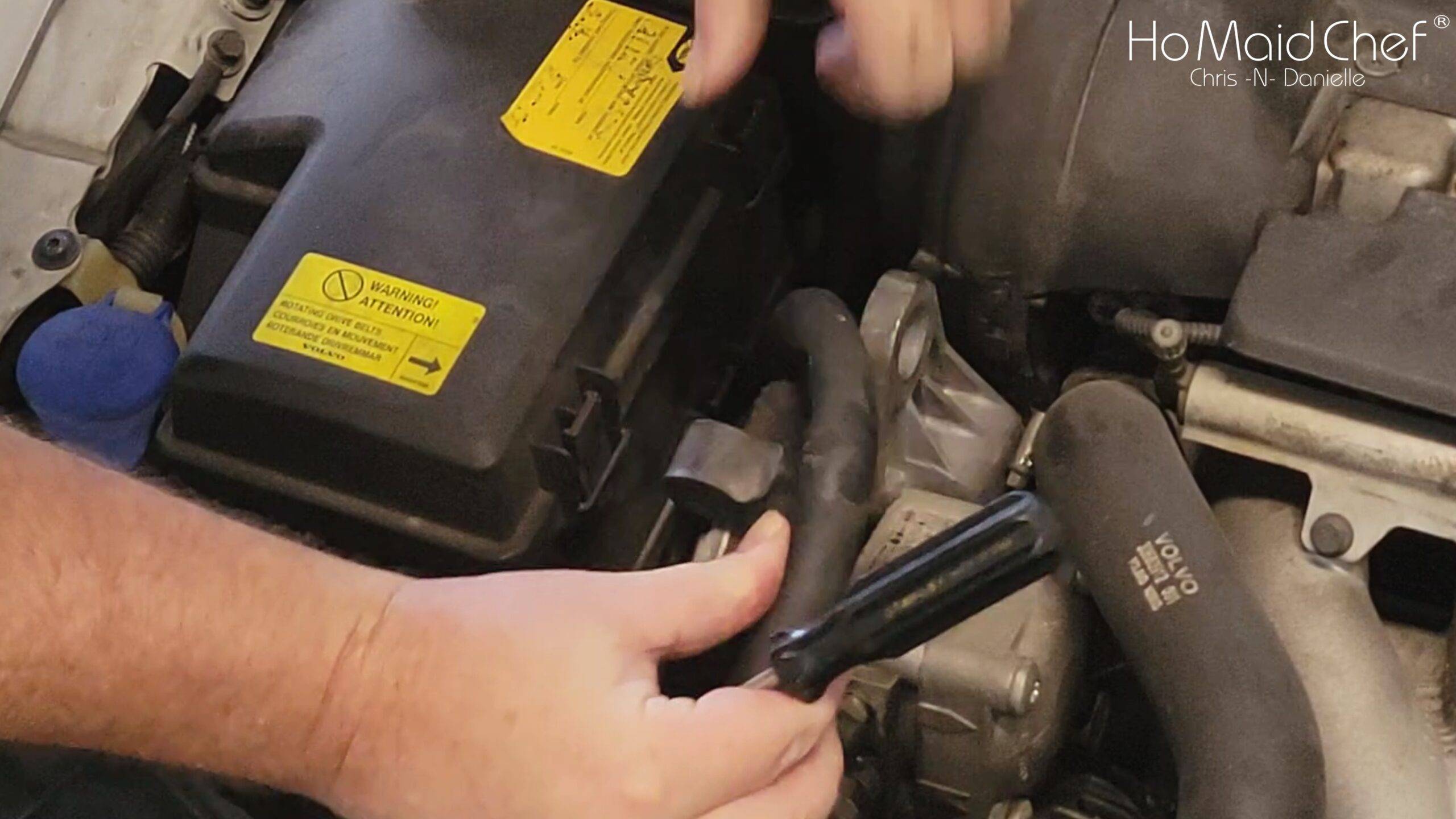

Unclip Volvo Power Steering Pump Line - Chris Does What
Unclip Volvo Power Steering Pump Line

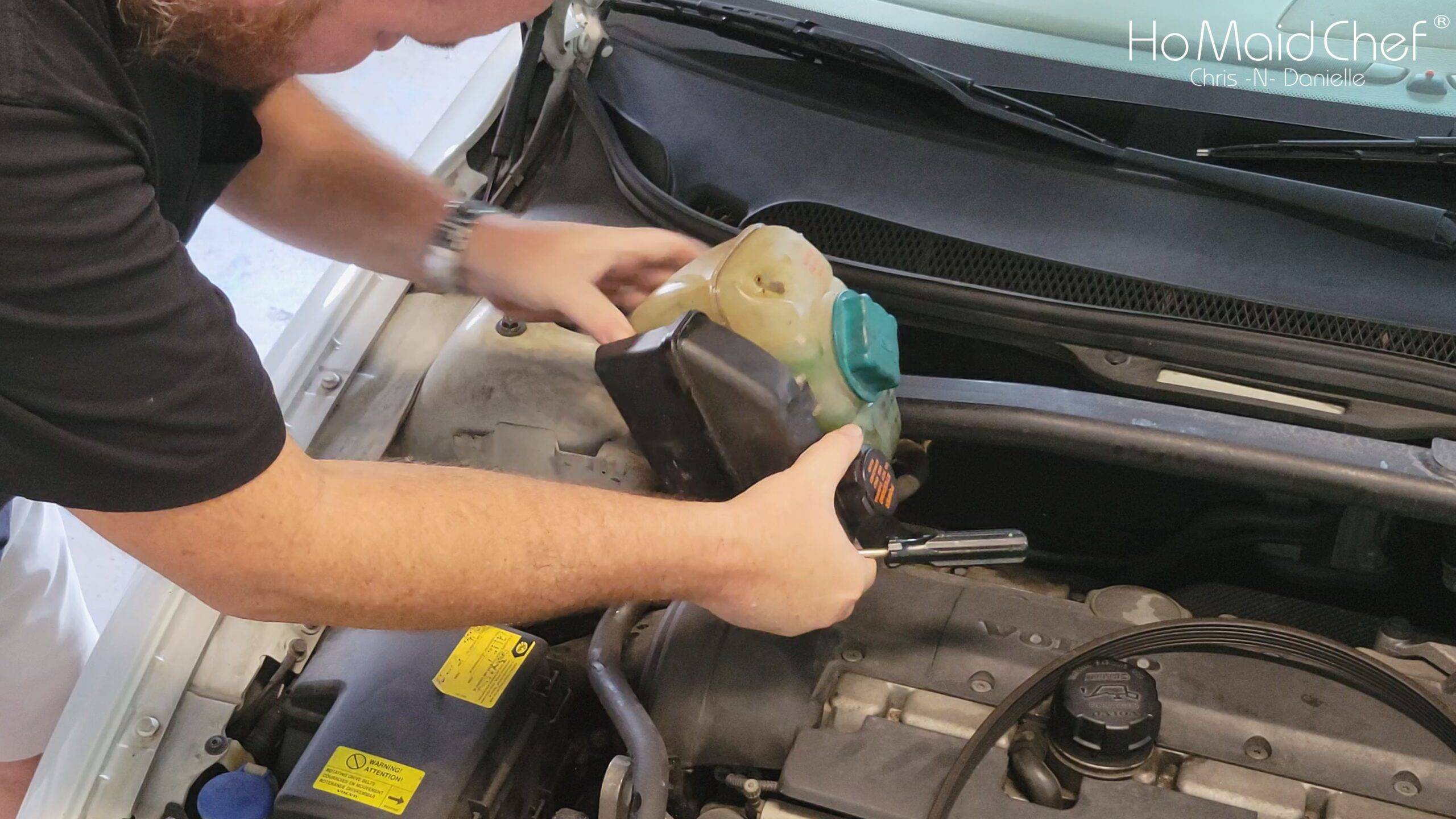

Move Volvo Reservoirs To Top Of Engine - Chris Does What
Move Volvo Reservoirs To Top Of Engine

Plastic Covers Re Annoying

Next you their is a plastic cover the is located forward of the radiator and power steering reservoir that clips in place. This can be unclipped and removed to further improve your the room you need to install the belt.

Remove Volvo Plastic Cover Forward The Reservoirs - Chris Does What
Remove Volvo Plastic Cover Forward The Reservoirs

How Does The Volvo Belt Go On

Now we have to get the belt on, and if the belt is gone, use the diagram below. When I installed the belt it was easiest to start at the crank pully. I thin looped the belt over the alternator. Once here it was a little challenging to get the belt looped under the AC pully, but once done you are on the home stretch. Lastly I simply looped the belt over the power steering pump and it was ready to be tensioned.

Serpentine Belt On Volvo
Serpentine Belt On Volvo

Tighten The Serpentine Belt

Now the tensioner can be a little bit of a pain. You have to make sure the the belt is between the 14 mm wrench and the tensioner or it will never go on. Then with the wrench you want to turn clockwise to loosen the tensioner and allowing the belt to slide on. Once on it is just working in reverse to get everything installed back in place.

Remember, Plastic Covers

And one note when installing everything back in place. That plastics cover has groves on the inside the must be lined up to get it back on.

Points In Video:

  • 00:00 Replace a Serpentine Belt On Volvo
  • 02:58 Remove The Radiator And Power Steering Reservoir For Volvo
  • 04:02 Serpentine Belt Diagram For Volvo
  • 04:33 The Install Of Serpentine Belt On Volvo
  • 08:24 Our Closing Thoughts
  • 11:45 Bloopers And Outtakes
